Smart, Secure, and Convenient Intercom System with Mobile Access & Touchscreen Control
The Aiphone JOS-1VW Smartphone Intercom Kit is a high-quality, hands-free video intercom solution, designed to enhance security and convenience for homes, offices, and gated properties. Featuring a large 7-inch touchscreen monitor, two-way audio communication, and mobile connectivity via the , this system enables real-time visitor verification and remote door unlocking from anywhere.
With Wi-Fi and network integration, expandable system support, and vandal-resistant construction, the JOS-1VW offers seamless security monitoring with easy installation.
Key Features
Smartphone Integration with Mobile Control
Answer Video Calls & Unlock Doors from Your Smartphone
View Live Feed from the Door Station Anytime, Anywhere
Large 7-Inch Touchscreen Monitor for Effortless Operation
High-Resolution LCD for Clear Image Viewing
Intuitive User Interface for Easy Navigation
Stores & Plays Back Recorded Calls with MicroSD Expansion
Secure & Vandal-Resistant Door Station
Die-Cast Zinc, Surface-Mounted Video Door Station
Built-in 1/4" CMOS Camera for Clear Video Capture
Automatic White LED Light for Night Vision Clarity
Expandable System for Advanced Access Control
Supports Up to 8 Smartphones or Tablets for Remote Viewing
Expandable with 1 Additional Door Station & 2 Indoor Room Stations
Optional Ringer Extender for Enhanced Alerts

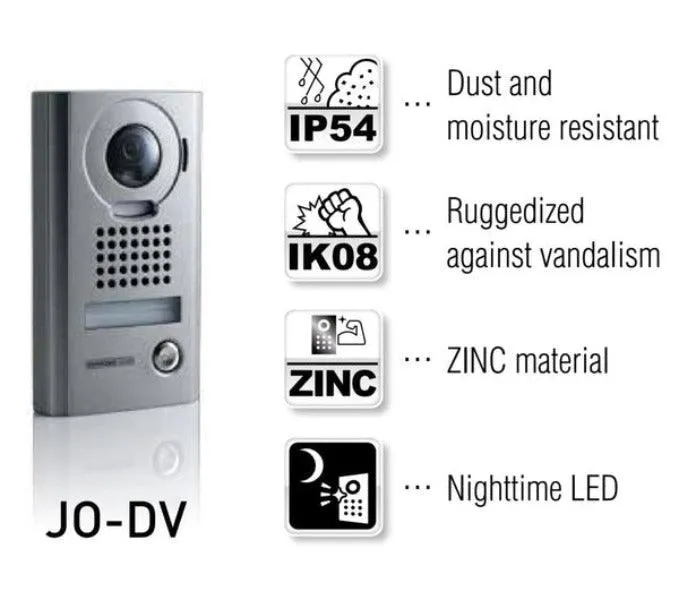

Durable, Weatherproof, & Reliable Design
IP54-Rated Outdoor Unit for Water & Dust Resistance
IK07 Impact Rating for Enhanced Durability
Whats in the Intercom Kit?

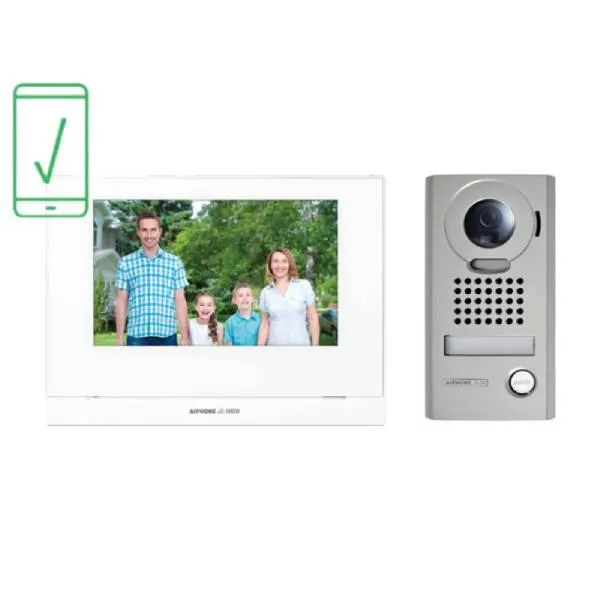

Complete System Includes:
1 7" Touchscreen Intercom Monitor (AI-JO-1MDW)
1 Surface-Mounted Intercom Door Station (AI-JO-DV)
1 Power Supply (PS-1820UL)
1 Rain Shield for Added Protection
Installation & Compatibility
Professional Security Installer Recommended for Best Setup
Requires Network Connection & Active SIM for Mobile App Access
Supports Optional Aiphone 30 Plastic Angle Bracket (APHFEWKAWDV) for Angled Mounting
Ideal Use Cases
Residential Homes & Apartments Provides secure visitor screening & remote access
Gated Communities & Villas Enhances security with smartphone monitoring
Office & Business Entry Systems Enables controlled access & real-time communication
Technical Specifications

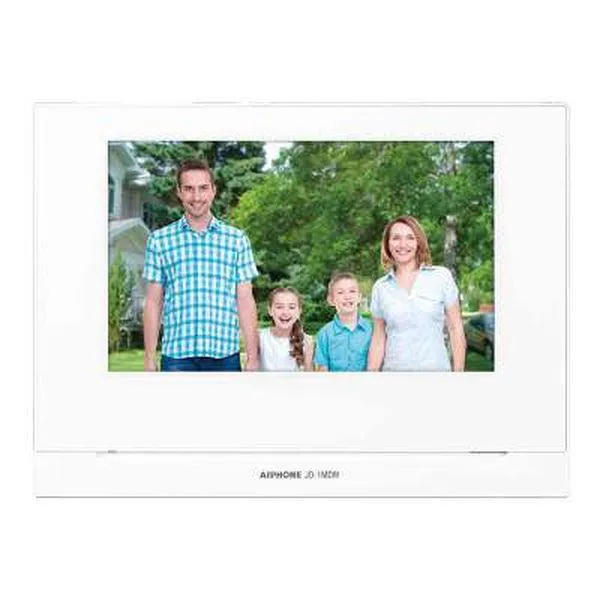

Indoor Monitor (AI-JO-1MDW)
- Display: 7 TFT LCD Touchscreen
- Resolution: 1024 600
- Internal Call Storage: Up to 10 Calls (Expandable with MicroSD Card, 32GB Max.)
- Power Supply: 12V DC / Standard PoE (IEEE802.3af)
- Communication: Hands-Free / Push-to-Talk (PTT) Mode
- Network Connectivity: Wi-Fi & Ethernet (RJ-45, 10/100 Mbps)

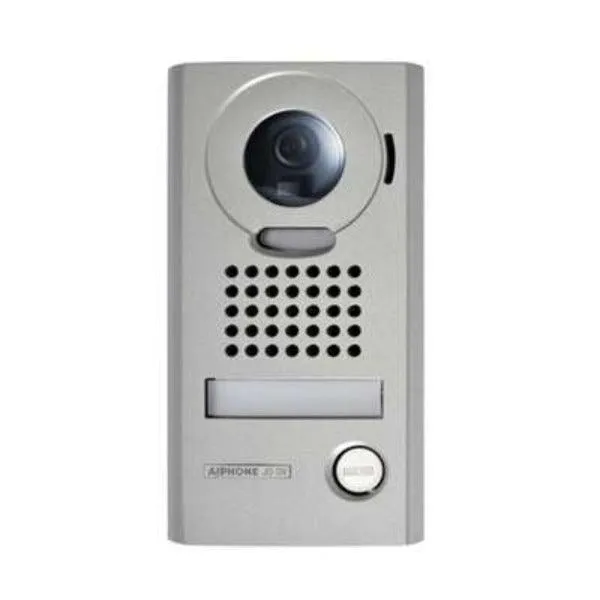

Outdoor Door Station (AI-JO-DV)
- Camera: 1/4 CMOS Color Sensor
- Resolution: 720 576
- Night Vision: White LED Light for Enhanced Visibility
- Build Material: Die-Cast Zinc with Stainless Steel Faceplate
- Weather Protection: IP54-Rated, Impact Resistant (IK07)
- Mounting: Flush or Surface Mounting
- Power Supply: Powered by Indoor Monitor
Power Supply (PS-1820UL)
- Input Voltage: 100-240V AC, 50/60Hz
- Output Voltage: 18V DC, 2A
Remote Access with Aiphone Intercom App (Type B)
Receive Video Calls & Unlock Doors from Your Smartphone
Monitor Live Feed from the Door Station & Connected Cameras
Playback Recorded Calls from the On-Site Monitor or Mobile App
Control & Configure the Intercom System Remotely
Why Choose the Aiphone JOS-1VW Smartphone Intercom?
The Aiphone JOS-1VW is a feature-rich, smartphone-compatible intercom system, perfect for residential and business security applications. With a large 7-inch touchscreen, mobile app integration, and vandal-resistant construction, this system provides modern security with enhanced access control and convenience.
